Mixed Signal Harnesses

Amphenol Military & Aerospace Mixed Signal Harnesses provide integrated interconnect solutions that combine multiple signal types—RF, fiber‑optic, power, and high‑speed digital—within one ruggedized cable or connector system. This grouped entry consolidates a series of harness subfamilies engineered to meet stringent aerospace, defense, and industrial requirements.

Comprehensive Harness Portfolio

• High‑Speed Mil‑Spec Harnesses – support data transmission for modern digital avionics and mission systems using shielded twinax, quadrax, or Ethernet‑class circuits.
• RF Mil‑Spec Harnesses – incorporate precision 50 Ω coaxial lines and connectors for radar, EW, and SATCOM frequency channels.
• Fiber Optic Mil‑Spec Harnesses – leverage fiber‑optic interconnects and optical termini to deliver EMI‑immune, high‑bandwidth links.

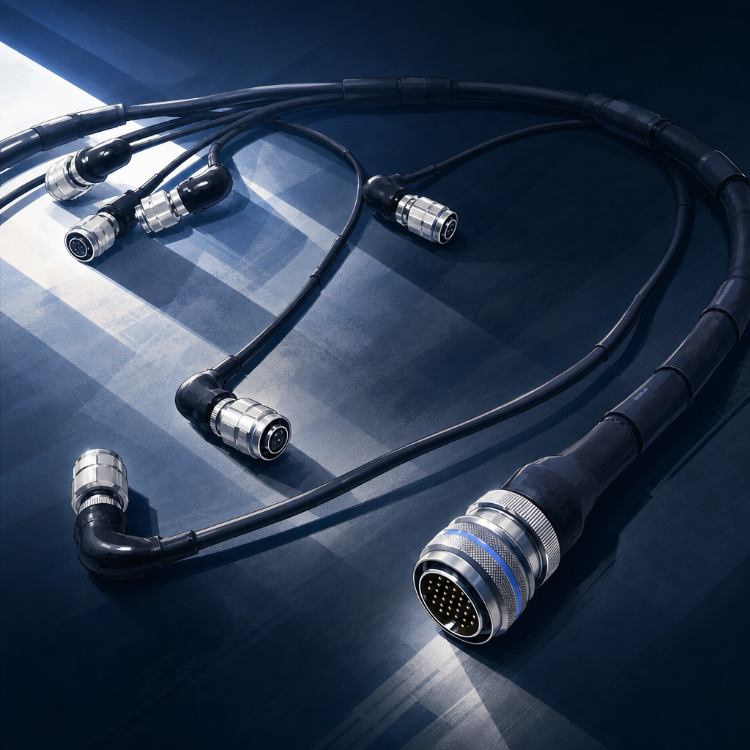

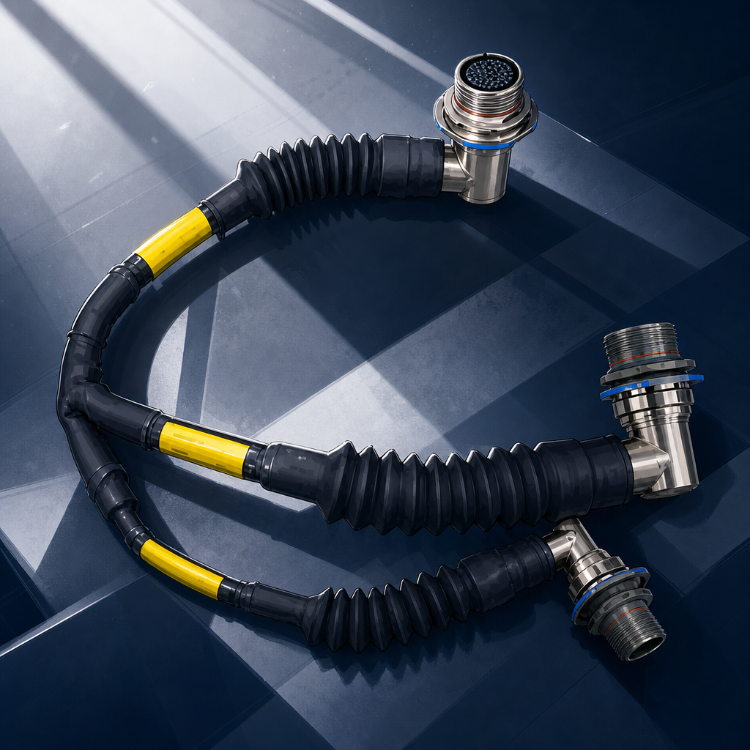

• Over‑Molded and Encapsulated Harnesses – use protective polymer over‑molding or full encapsulation for environmental sealing and vibration durability.

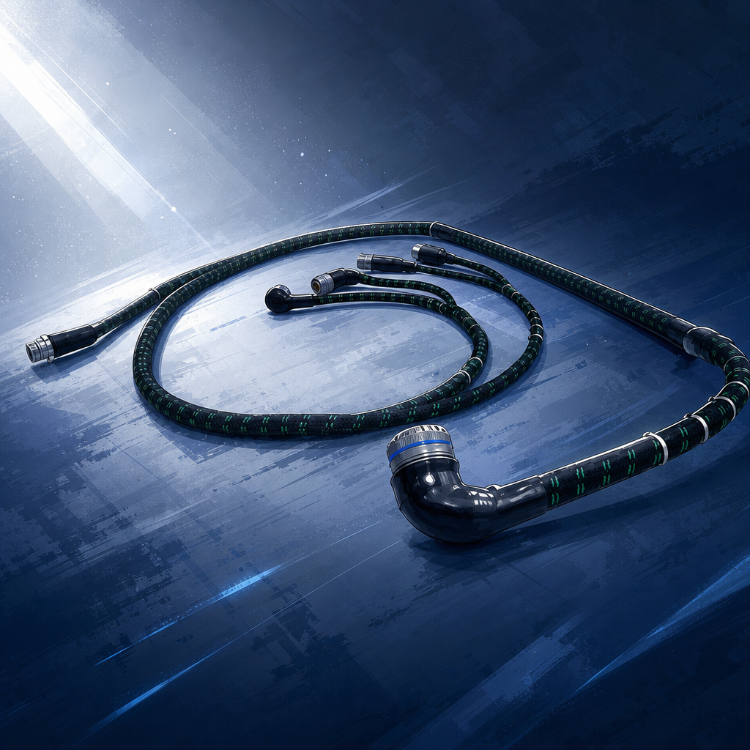

• Braided and Shielded Harnesses – apply woven and metallic jacket structures to provide 360° EMI/EMP shielding and mechanical strain relief.
• Fiber Optic Flex Planes – laminate flat optical or hybrid circuits for flexible routing in constrained electronic enclosures.

Engineering Considerations

Each mixed‑signal harness type is manufactured under Amphenol’s controlled quality framework to maintain electrical isolation, impedance continuity, and reliable performance across temperature, vibration, and environmental exposure. Custom configurations may integrate:

• Multi‑conductor arrangements combining coaxial, twinax, and optical lines
• Hermetic or over‑molded terminations for sealed mission environments
• Strain‑relief boots and backshells optimized for platform‑specific routing
• Materials and plating systems selected for corrosion resistance and EMI control

Applications

Mixed Signal Harnesses are deployed in aerospace avionic suites, radar and electronic warfare modules, communications subsystems, and integrated vehicle wiring architectures. Their hybrid composition enables designers to minimize connector count, reduce weight, and simplify system integration where multiple signal domains coexist in a single harness.

Selection Guidance

Engineers can specify harness constructions based on required impedance class (50 Ω RF or 100 Ω differential), environmental sealing level, and platform routing constraints. The subgroup pages within this family provide more detailed configuration data and termination options for each harness type.
