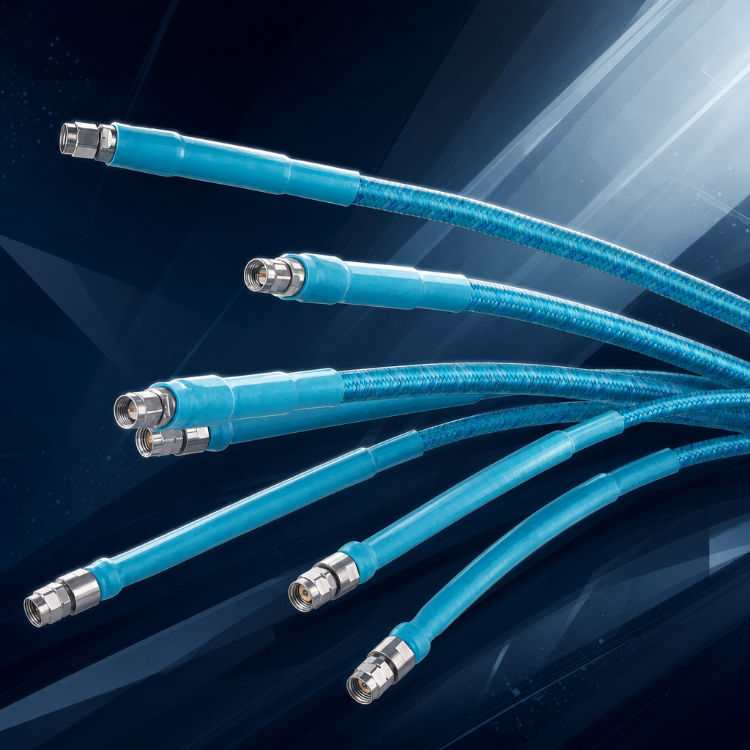

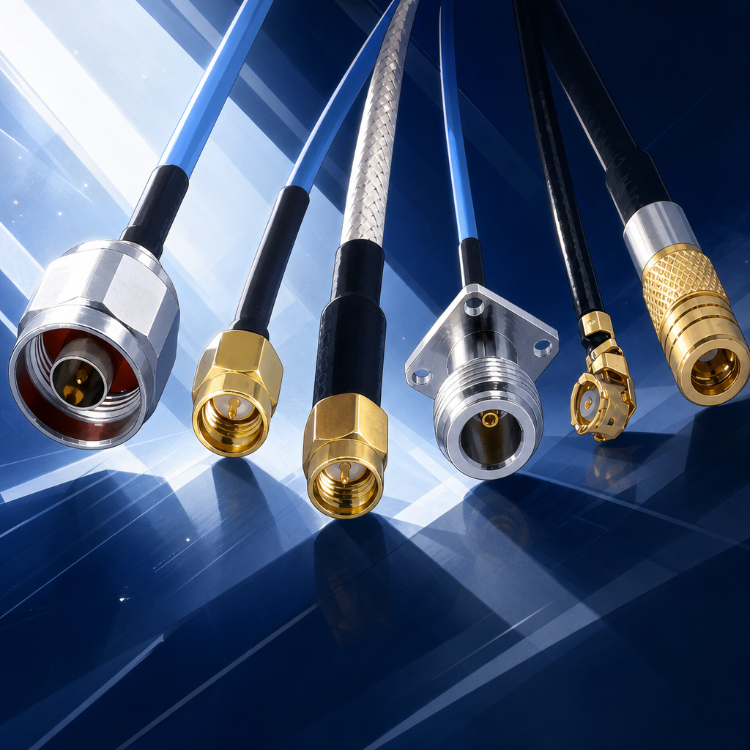

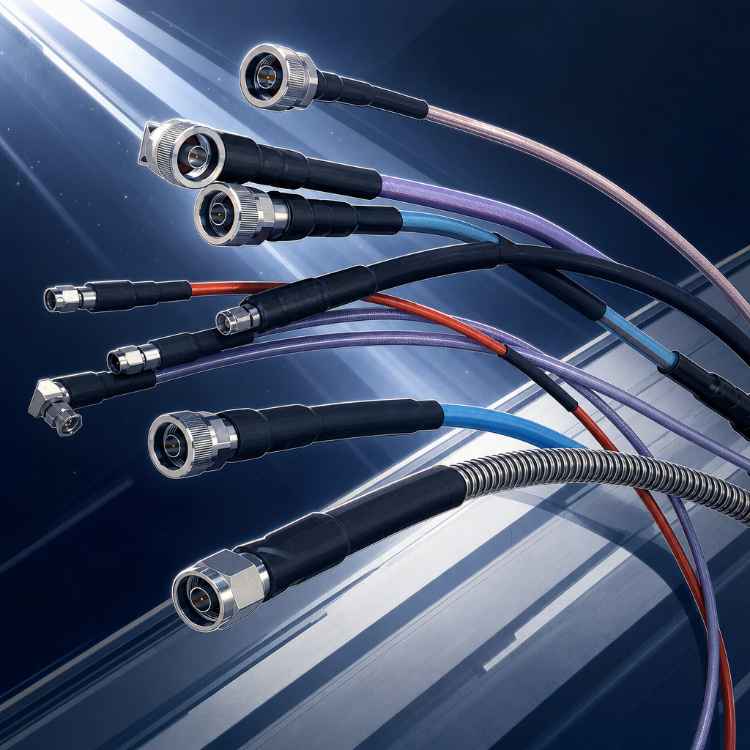

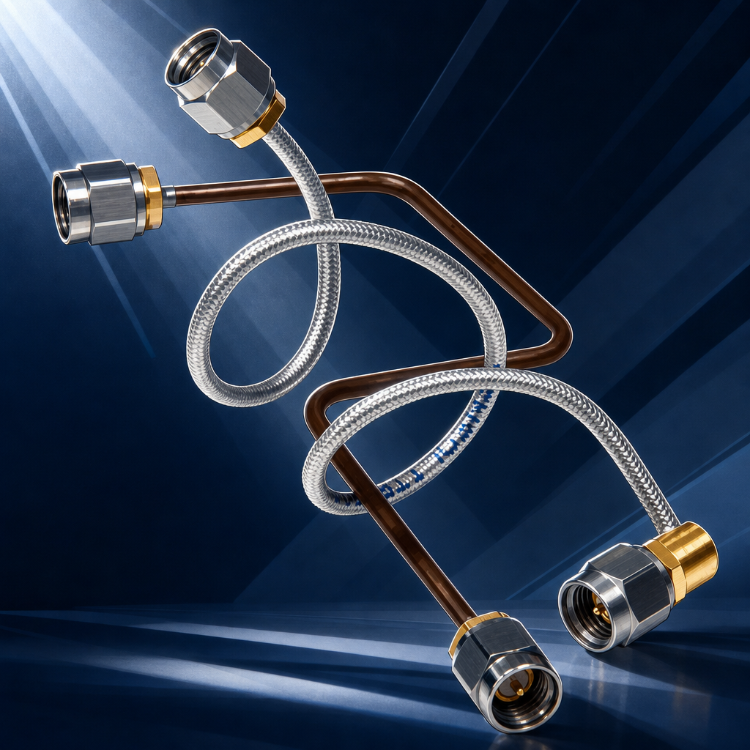

Single Port RF Cable Assemblies
Previous productMulti-Port/Ganged RF Cable ...
Next productPanel Mount RF Connectors

RF/Microwave Components, Cables & Interconnect
RF Cable, Connectors & Cable Assemblies

Baseline 50 Ω RF and microwave cable assembly family integrating standard SMA, SMP, TNC, BNC, N‑Type, and SMB connectors with Amphenol Military & Aerospace cable technologies. Provides low‑VSWR performance and durable construction across flexible, semi‑rigid, and specialty variants for radar, SATCOM, EW, and test applications.

Available From: Amphenol CDI, Amphenol CIT, EZ Form Cable, IntelliConnect, Micro-Coax, SV Microwave, Times Microwave

Amphenol Military & Aerospace Standard Interface Cable Assemblies form the foundation of the organization’s 50 Ω coaxial interconnect portfolio. They combine proven connector standards such as SMA, SMP, SMPM, TNC, BNC, N‑Type, and SMB with a range of cable constructions engineered for signal integrity and durability in demanding defense and aerospace environments.

Comprehensive RF Assembly Portfolio

This grouped family brings together multiple sub‑series designed to meet different mechanical and electrical requirements:

  • Semi‑Rigid RF Cable Assemblies – Metal‑sheathed designs offering stable impedance and shielding for fixed routing.
  • Flexible and Low Loss RF Cable Assemblies – Phase‑stable, low‑attenuation lines suited to dynamic or vibration‑exposed installations.
  • High Performance RF Cable Assemblies – Precision broadband assemblies supporting operation across microwave and mmWave frequencies.
  • Harsh Environment RF Cable Assemblies – Hermetically sealed and vapor‑protected configurations qualified for extreme conditions.
  • Small Form Factor and Cryogenic Variants – Miniature or specialty configurations for compact and temperature‑critical systems.

Design and Engineering Considerations

Each assembly maintains broadband 50 Ω impedance control with low VSWR termination to minimize reflection. Options include semi‑rigid copper‑tin composite, formable, and low‑loss PTFE‑ or SiO₂‑based dielectric structures to balance mechanical flexibility, attenuation, and environmental protection. Assemblies can integrate standard interface connectors directly or via hybrid transitions such as ConvergeRF for mixed‑diameter cable routing.

Applications and System Integration

Standard Interface Cable Assemblies are used throughout radar, electronic warfare, satellite communications, avionics, and laboratory test infrastructures. Their consistent impedance and mechanical precision allow interchangeability across Amphenol divisions—including SV Microwave, Times Microwave Systems, EZ Form, CDI, and IntelliConnect—ensuring backward compatibility and broad integration with existing 50 Ω system architectures.

Selection Guidance

Engineers can select assemblies by balancing frequency range, flexure requirement, and environmental exposure:

  • Use semi‑rigid or formable styles for high‑frequency, fixed installations requiring precision phase match.
  • Choose low‑loss or high‑performance lines for extended microwave or mmWave bandwidth.
  • Specify harsh‑environment assemblies for sealed or high‑vibration missions.
  • Apply small‑form factor assemblies where space and weight constraints dominate.

All variants adhere to Amphenol’s rigorous RF performance audit and dimensional verification process ensuring mechanical repeatability and broadband 50 Ω conformance across the product family.

Amphenol Military & Aerospace Standard Interface Cable Assemblies form the foundation of the organization’s 50 Ω coaxial interconnect portfolio. They combine proven connector standards such as SMA, SMP, SMPM, TNC, BNC, N‑Type, and SMB with a range of cable constructions engineered for signal integrity and durability in demanding defense and aerospace environments.

Comprehensive RF Assembly Portfolio

This grouped family brings together multiple sub‑series designed to meet different mechanical and electrical requirements:

  • Semi‑Rigid RF Cable Assemblies – Metal‑sheathed designs offering stable impedance and shielding for fixed routing.
  • Flexible and Low Loss RF Cable Assemblies – Phase‑stable, low‑attenuation lines suited to dynamic or vibration‑exposed installations.
  • High Performance RF Cable Assemblies – Precision broadband assemblies supporting operation across microwave and mmWave frequencies.
  • Harsh Environment RF Cable Assemblies – Hermetically sealed and vapor‑protected configurations qualified for extreme conditions.
  • Small Form Factor and Cryogenic Variants – Miniature or specialty configurations for compact and temperature‑critical systems.

Design and Engineering Considerations

Each assembly maintains broadband 50 Ω impedance control with low VSWR termination to minimize reflection. Options include semi‑rigid copper‑tin composite, formable, and low‑loss PTFE‑ or SiO₂‑based dielectric structures to balance mechanical flexibility, attenuation, and environmental protection. Assemblies can integrate standard interface connectors directly or via hybrid transitions such as ConvergeRF for mixed‑diameter cable routing.

Applications and System Integration

Standard Interface Cable Assemblies are used throughout radar, electronic warfare, satellite communications, avionics, and laboratory test infrastructures. Their consistent impedance and mechanical precision allow interchangeability across Amphenol divisions—including SV Microwave, Times Microwave Systems, EZ Form, CDI, and IntelliConnect—ensuring backward compatibility and broad integration with existing 50 Ω system architectures.

Selection Guidance

Engineers can select assemblies by balancing frequency range, flexure requirement, and environmental exposure:

  • Use semi‑rigid or formable styles for high‑frequency, fixed installations requiring precision phase match.
  • Choose low‑loss or high‑performance lines for extended microwave or mmWave bandwidth.
  • Specify harsh‑environment assemblies for sealed or high‑vibration missions.
  • Apply small‑form factor assemblies where space and weight constraints dominate.

All variants adhere to Amphenol’s rigorous RF performance audit and dimensional verification process ensuring mechanical repeatability and broadband 50 Ω conformance across the product family.

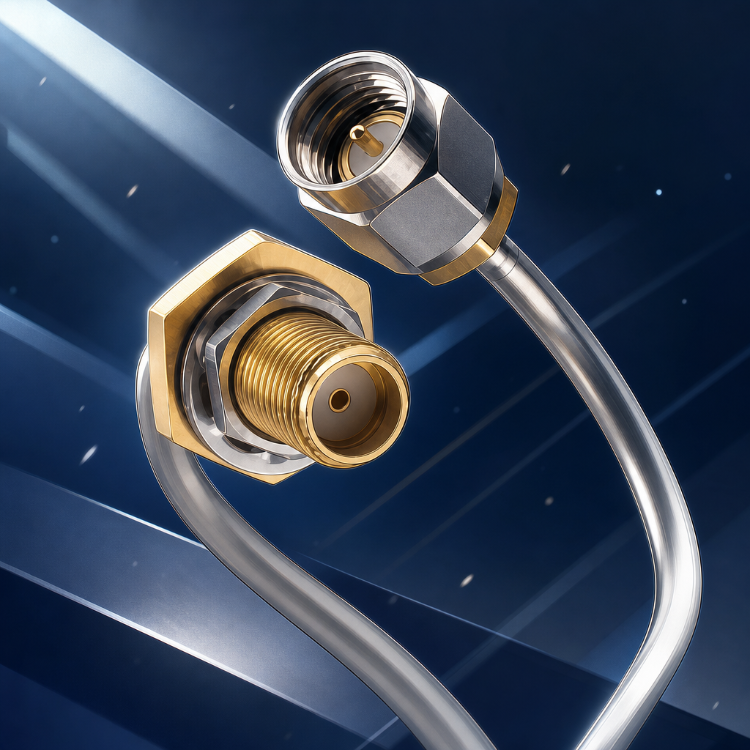

EZF RF Cable Connectors for Semi Rigid Cable
Semi-Rigid RF Cable Assemblies

Standard 50 Ω RF and microwave connectors from Amphenol Military & Aerospace’s EZ Form facility, offering SMA, SMP, SMPM, TNC, BNC, N‑Type, and SMB interfaces. Designed for rugged low‑VSWR coaxial performance in radar, SATCOM, EW, avionics, and test environments and compatible with EZ Form semi‑rigid and flexible cables.

Visit Manufacturer Site View additional product details on the manufacturer's website

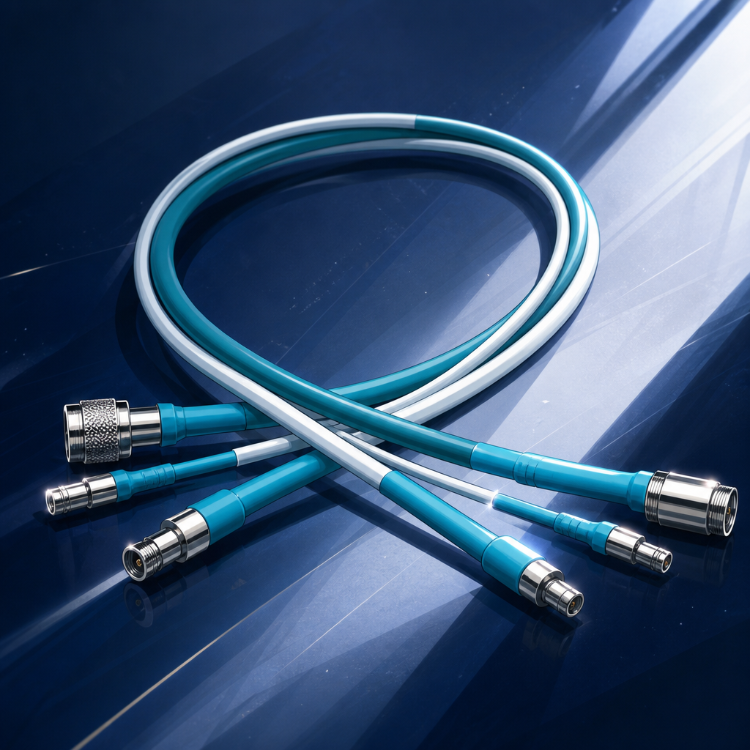

MCX High Frequency RF Cable Assemblies
Test & Measurement RF Cable Assemblies

Precision 50 Ω test and measurement RF cable assemblies engineered by Amphenol Military & Aerospace’s Micro‑Coax division for repeatable, phase‑stable performance to 70 GHz. The AccuPhase family delivers rugged, internally reinforced flexible construction for laboratory, production, and flight‑line use without recalibration after movement.

Visit Manufacturer Site View additional product details on the manufacturer's website

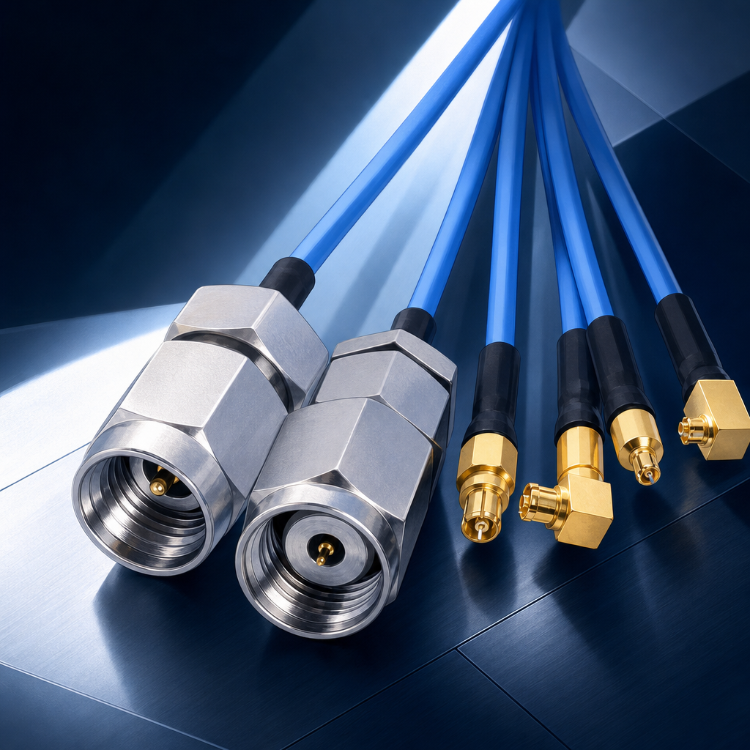

SVM Small Form Factor RF Cable Assemblies
Small Form Factor RF Cable Assemblies

SV Microwave small form factor RF cable assemblies from Amphenol Military & Aerospace provide compact, 50 Ω low‑VSWR connections using SMP, SMPM, SMPS, and related miniature interfaces operating through approximately 67 GHz. Available in Low‑Profile, Mini‑D, UltraLite, Keyed SMA, and Non‑Magnetic variants for high‑density radar, EW, ATE, and quantum computing applications.

Visit Manufacturer Site View additional product details on the manufacturer's website

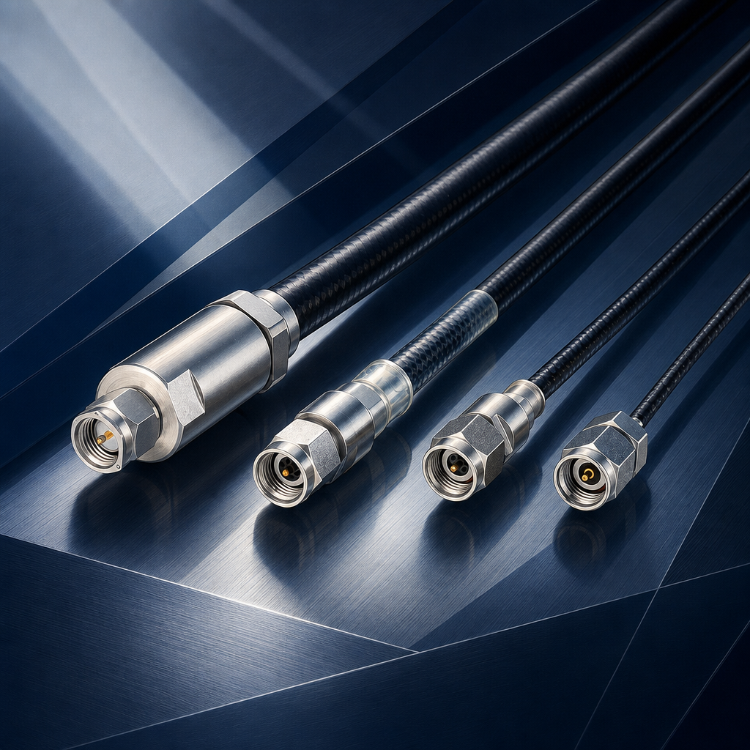

TMS Harsh Environment RF Cable Assemblies
Harsh Environment RF Cable Assemblies

Hermetically sealed MilTech®‑family flexible RF cable assemblies from Amphenol Military & Aerospace’s Times Microwave line offer 50 Ω low‑VSWR performance in extreme environments. Tested to MIL‑T‑81490 and MIL‑C‑87104, they combine spiral flat‑strip braid construction, vapor‑sealed jackets, and replaceable SMA or ATNC connectors for reliable microwave transmission in vibration, chemical, and temperature‑extreme conditions.

Visit Manufacturer Site View additional product details on the manufacturer's website

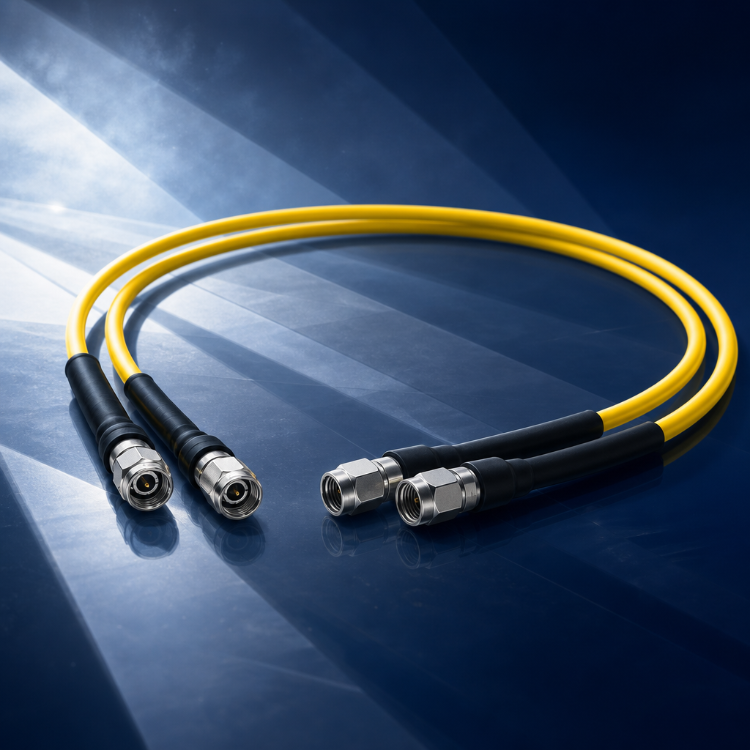

ITC Low Loss RF Cable Assemblies
Low Loss RF Cable Assemblies

Flexible and semi‑flexible 50 Ω coaxial cable assemblies engineered by Amphenol Military & Aerospace’s IntelliConnect division for low‑attenuation, phase‑stable microwave performance. Options include IW Series Low Loss, Spiral Strip, Conformable, and LMR‑type variants supporting frequencies into the tens of GHz for radar, SATCOM, EW, and test systems.

Visit Manufacturer Site View additional product details on the manufacturer's website

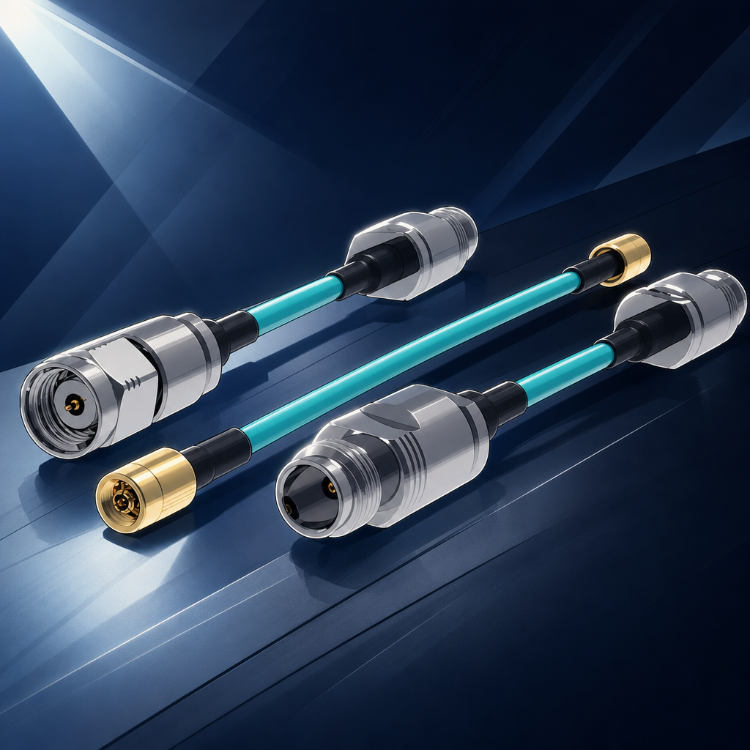

CDI High Performance RF Cable Assemblies
Test & Measurement RF Cable Assemblies

Amphenol Military & Aerospace’s Amphenol CDI High Performance RF Cable Assemblies deliver low‑loss, broadband 50 Ω transmission across SMA, SMP, SMPM, 2.92 mm, 2.4 mm, and 1.85 mm interfaces. Options include flexible jumpers, high‑density CoreHC™ solderless PCB interconnects, and cryogenic CoreCryo™ or semi‑rigid assemblies for quantum and aerospace uses.

Visit Manufacturer Site View additional product details on the manufacturer's website

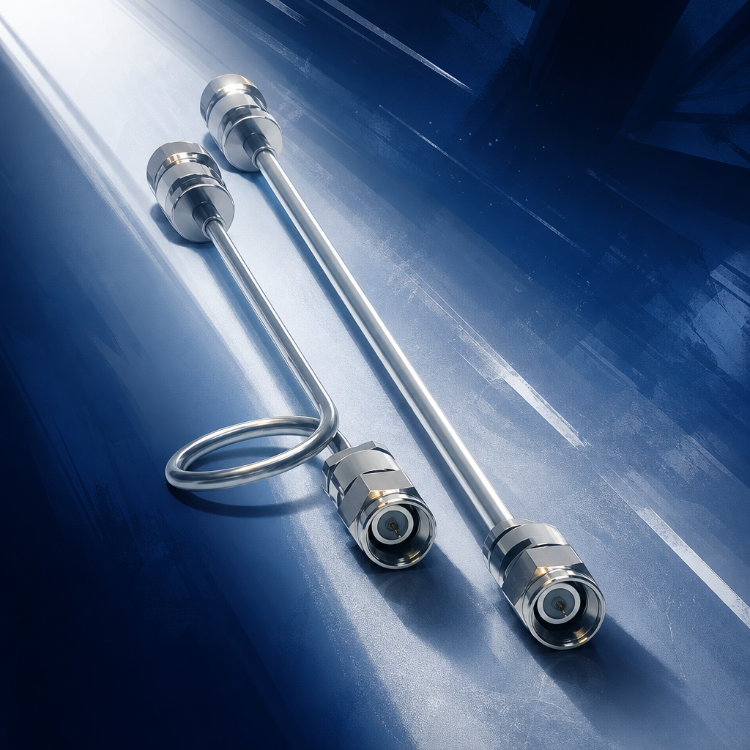

ITC Cryogenic Semi Rigid RF Cable Assemblies
Cryogenic Semi-Rigid RF Cable Assemblies

Semi‑rigid cryogenic RF cable assemblies from Amphenol Military & Aerospace’s IntelliConnect CryoCoax line engineered for operation down to sub‑4 K temperatures. Available in stainless‑steel, cupronickel, beryllium‑copper, and niobium‑titanium constructions, these 50 Ω assemblies maintain low attenuation and consistent impedance to 40 GHz, providing reliable signal paths for quantum, medical, and research cryogenic systems.

Visit Manufacturer Site View additional product details on the manufacturer's website

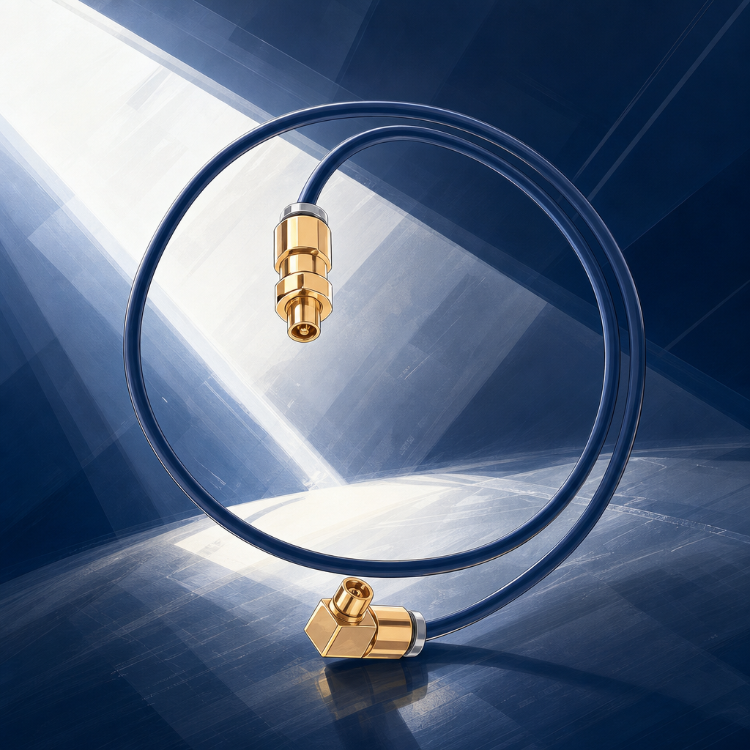

SVM Small Diameter Flexible RF Cable Assemblies
Small Diameter Flexible RF Cable Assemblies

SV Microwave small‑diameter flexible RF cable assemblies from Amphenol Military & Aerospace offer Ø.047 in to Ø.087 in options providing 50 Ω low‑VSWR performance, tight‑bend flexibility, and broadband operation through 65 GHz. Available with SMA, 2.92 mm, 2.4 mm, 1.85 mm, SMP, and SMPM connectors for compact aerospace, defense, and telecom routing where space and loss are critical.

Visit Manufacturer Site View additional product details on the manufacturer's website

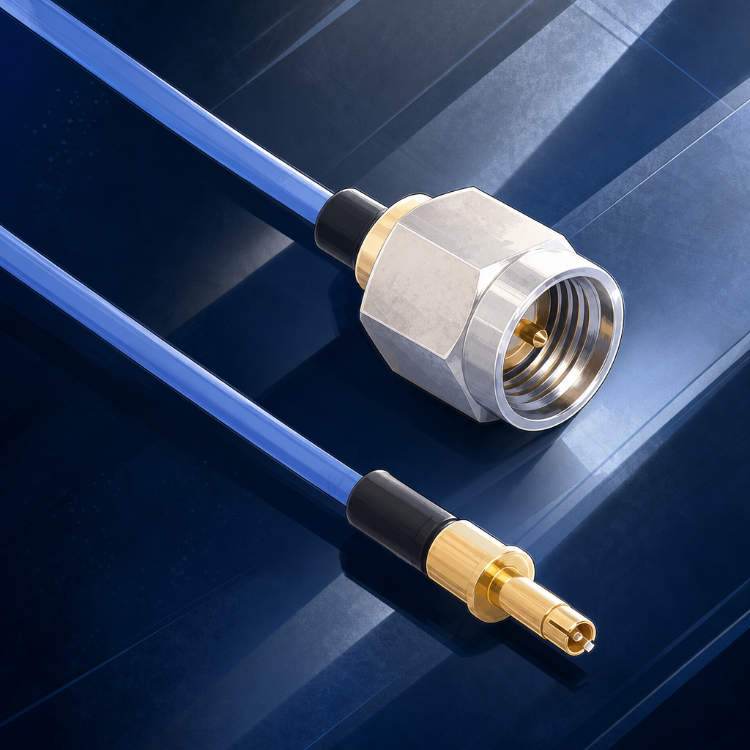

SVM D38999 Contact RF Cable Assemblies
D38999 Contact RF Cable Assemblies

SV Microwave D38999 Contact RF Cable Assemblies from Amphenol Military & Aerospace provide high‑frequency BMA, BMB, SMPM, and SMPS contacts terminated to SMA male connectors on Ø.085 and Ø.141 in cables. They deliver 50 Ω low‑VSWR performance through MIL‑DTL‑38999 size 8, 12, and 16 positions for military and aerospace systems requiring rugged microwave integration.

Visit Manufacturer Site View additional product details on the manufacturer's website

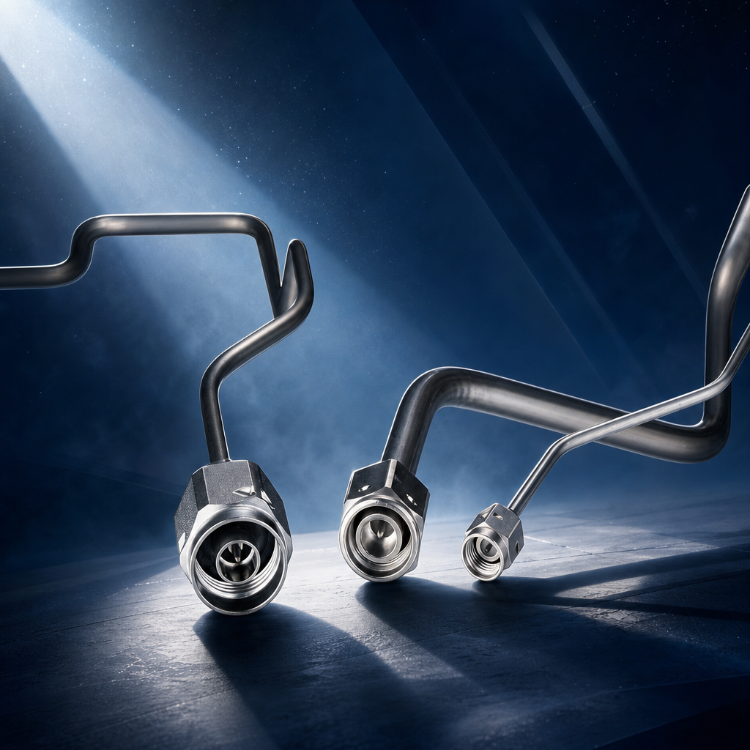

TMS Space & Vacuum Rated Semi Rigid RF Cable Assemblies
Space & Vacuum Rated Semi-Rigid RF Cable Assemblies

Space‑ and vacuum‑rated semi‑rigid RF cable assemblies using a proprietary SiO₂ dielectric and stainless‑steel construction for cryogenic to high‑temperature performance. Designed by Amphenol Military & Aerospace’s Times Microwave Systems for ultra‑high‑vacuum, radiation‑hard, and hermetically sealed signal paths in spacecraft and scientific platforms.

Visit Manufacturer Site View additional product details on the manufacturer's website

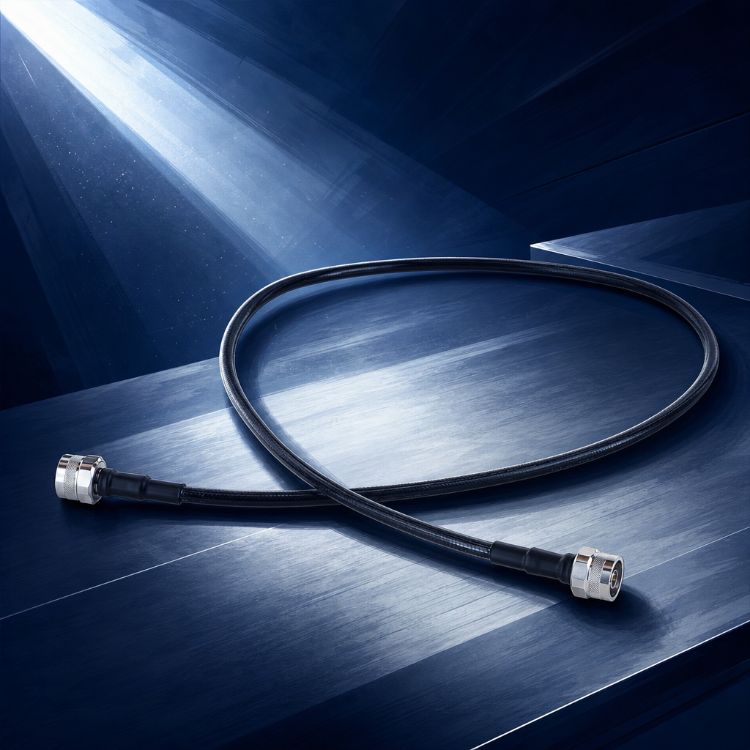

TMS High Power Flexible RF Cable Assemblies
High Power Flexible RF Cable Assemblies

High‑power 50 Ω flexible RF cable assemblies from Amphenol Military & Aerospace’s Times Microwave Systems portfolio. Built on the StripFlex®, HP, and HPL cable families, these assemblies provide low‑loss, low‑VSWR signal transmission with robust shielding and mechanical flexibility for radar, electronic warfare, and industrial high‑energy RF systems.

Visit Manufacturer Site View additional product details on the manufacturer's website
EZF Formable RF Cable Assemblies
Formable RF Cable Assemblies

Hand‑formable 50 Ω RF cable assemblies from Amphenol Military & Aerospace’s EZ Form Cable line, providing semi‑rigid‑level shielding and electrical performance without the need for precision bending tools.

Visit Manufacturer Site View additional product details on the manufacturer's website

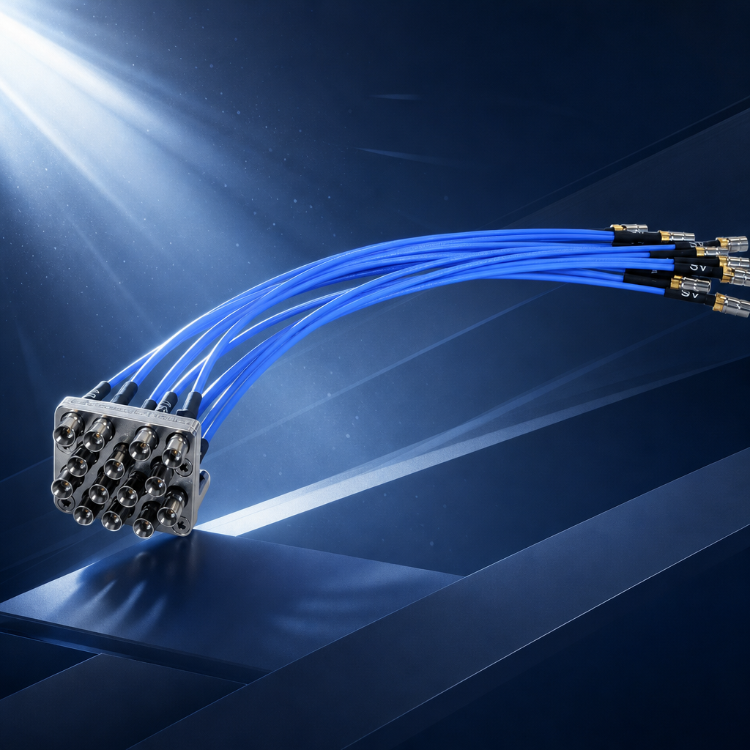

SVM VITA, OpenVPX & SOSA Aligned RF Cable Assemblies
VITA, OpenVPX & SOSA-Aligned RF Cable Assemblies
SV Microwave VITA, OpenVPX & SOSA‑Aligned RF Cable Assemblies are 50 Ω low‑VSWR coaxial links using SMPM and SMPS precision interfaces to interconnect OpenVPX modules via standardized VITA 67 blind‑mate connectors in embedded aerospace and defense systems.
Visit Manufacturer Site View additional product details on the manufacturer's website

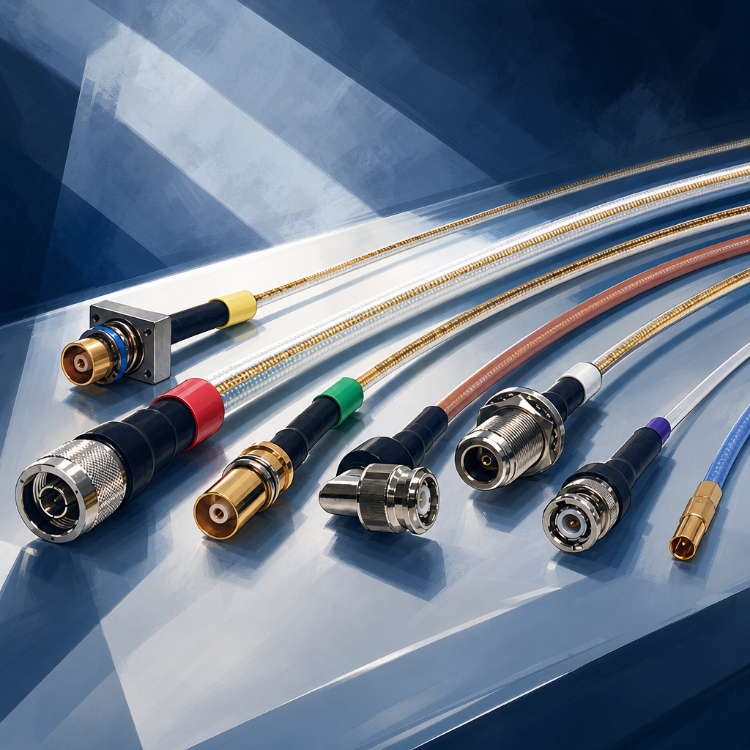

CIT Avionics RF Cable Assemblies
Avionics RF Cable Assemblies
Flexible 50 Ω avionics‑grade RF cable assemblies designed for stable, low‑VSWR performance in airborne radar, communications, and navigation systems.
Visit Manufacturer Site View additional product details on the manufacturer's website
